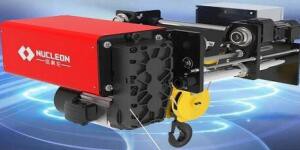

Nucleon NR European Electrical Wire Rope Hoist

China Nucleon NR European Electrical Wire Rope Hoist

Quality. Efficiency. Durability. Cost-effective.

New type wire rope electric hoist is the ideal hoisting product for your applications up to 80 tons. The hoist ranging from the basic configuration to equipment of high-tech advanced characteristics. All key mechanical components are designed, manufactured, assembled and tested  and subsidiary factory by very experienced crane specialists, ensuring the highest quality and durability of the hoist.

Nucleon NR European Electrical Wire Rope Hoist
Nucleon NR European Electrical Wire Rope Hoist

modular C-design, has compact structure, low headroom, stable lifting operation, accurate positioning

Safe working load capacities up to 80 tons

Standard hoisting and cross travelling duty is M5.

Standard dual hoisting speeds, variable frequency drive(VFD) for cross travelling. Control method by wire pendant connection or radio remote control. One-stage or two-stage hoisting and travelling limit switch elements. Overload Limiter equipped to avoid overload and ensure safety. Standard protection class IP55, insulation class F.

Nucleon NR European Electrical Wire Rope Hoist
Nucleon NR European Electrical Wire Rope Hoist

Nucleon NR European Electrical Wire Rope Hoist

SPECIFICATION



Model

Lifting capacity

(ton)

Lifting height

(m)

Working level

(FEM/ISO)

Lifting speed

(m/min)

Lifting power

(kW)

Running speed

(m/min)

Running power

(kW)

NR-3 3 6 2m/M5 5/0.8 3.2/0.45 5-20 0.37
NR-3 3 9 2m/M5 5/0.8 3.2/0.45 5-20 0.37
NR-3 3 12 2m/M5 5/0.8 3.2/0.45 5-20 0.37
NR-3 3 15 2m/M5 5/0.8 3.2/0.45 5-20 0.37
NR-3 3 18 2m/M5 5/0.8 3.2/0.45 5-20 0.37
NR-5 5 6 2m/M5 5/0.8 6.1/1 5-20 0.5
NR-5 5 9 2m/M5 5/0.8 6.1/1 5-20 0.5
NR-5 5 12 2m/M5 5/0.8 6.1/1 5-20 0.5
NR-5 5 15 2m/M5 5/0.8 6.1/1 5-20 0.5
NR-5 5 18 2m/M5 5/0.8 6.1/1 5-20 0.5
NR-10 10 6 2m/M5 5/0.8 9.5/1.5 5-20 0.75
NR-10 10 9 2m/M5 5/0.8 9.5/1.5 5-20 0.75
NR-10 10 12 2m/M5 5/0.8 9.5/1.5 5-20 0.75
NR-10 10 15 2m/M5 5/0.8 9.5/1.5 5-20 0.75
NR-10 10 18 2m/M5 5/0.8 9.5/1.5 5-20 0.75
NR-16 16 6 2m/M5 4/0.6 16/2.6 5-20 0.75*2
NR-16 16 9 2m/M5 4/0.6 16/2.6 5-20 0.75*2
NR-16 16 12 2m/M5 4/0.6 16/2.6 5-20 0.75*2
NR-16 16 15 2m/M5 4/0.6 16/2.6 5-20 0.75*2
NR-16 16 18 2m/M5 4/0.6 16/2.6 5-20 0.75*2
NR-20 20 6 1Am/M4 4/0.6 16/2.6 5-20 0.75*2
NR-20 20 9 1Am/M4 4/0.6 16/2.6 5-20 0.75*2
NR-20 20 12 1Am/M4 4/0.6 16/2.6 5-20 0.75*2
NR-20 20 15 1Am/M4 4/0.6 16/2.6 5-20 0.75*2
NR-20 20 18 1Am/M4 4/0.6 16/2.6 5-20 0.75*2
